GHMUL 20

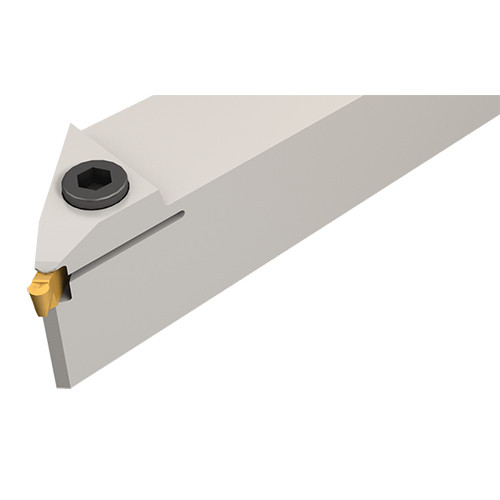

Grooving Toolholder; 20 mm × 20 mm Shank Size to 6.4 mm Width × 122 mm OAL ; Steel

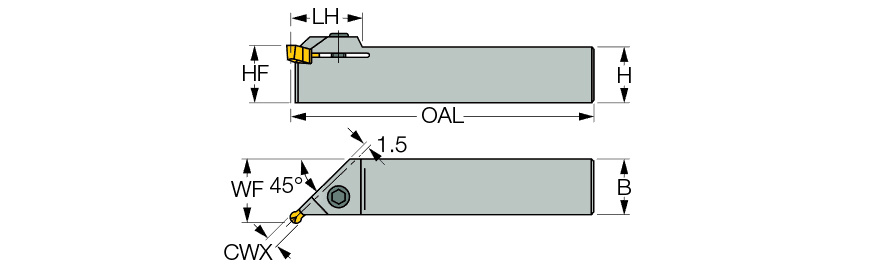

| Cutting Width Maximum (CWX) | 6.4 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Undercut | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 23 mm | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 122 mm |
Product Features
| Family Description | CUT-GRIP external holders for 45° undercutting. | Country of Origin | Israel |
| Remarks | For D>100 mm, GIP/GIF inserts can be used (clearance types UN, D or G are not required). To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.881
