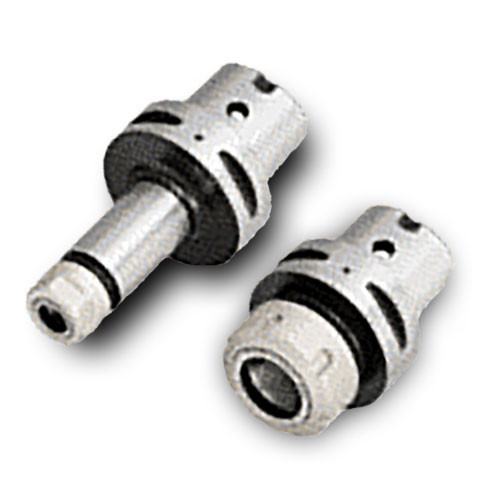

C6ER16X100

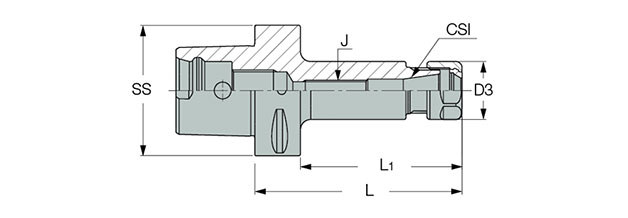

Collet Chuck ; ER16 Connection Size ; 1.102″ Body Dia. ; C6 Shank Dia. ; 0.039″ Min. Capacity ; 0.394″ Max. Capacity
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 3.071″ | Thread Size | M10 |
| Connection Diameter Machine Side (DCONMS) | C6 | Body Material | Steel |
Product Features
| Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.543
