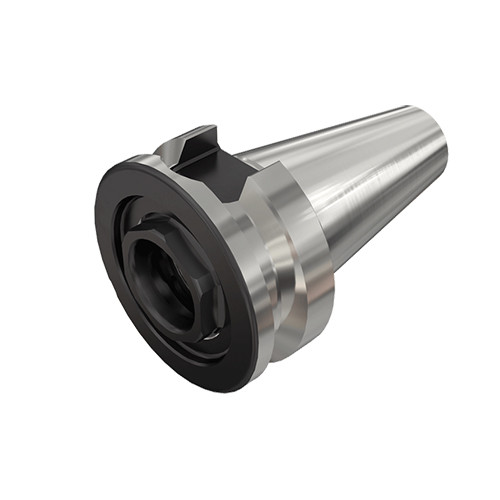

BT50 ER32 SHORT

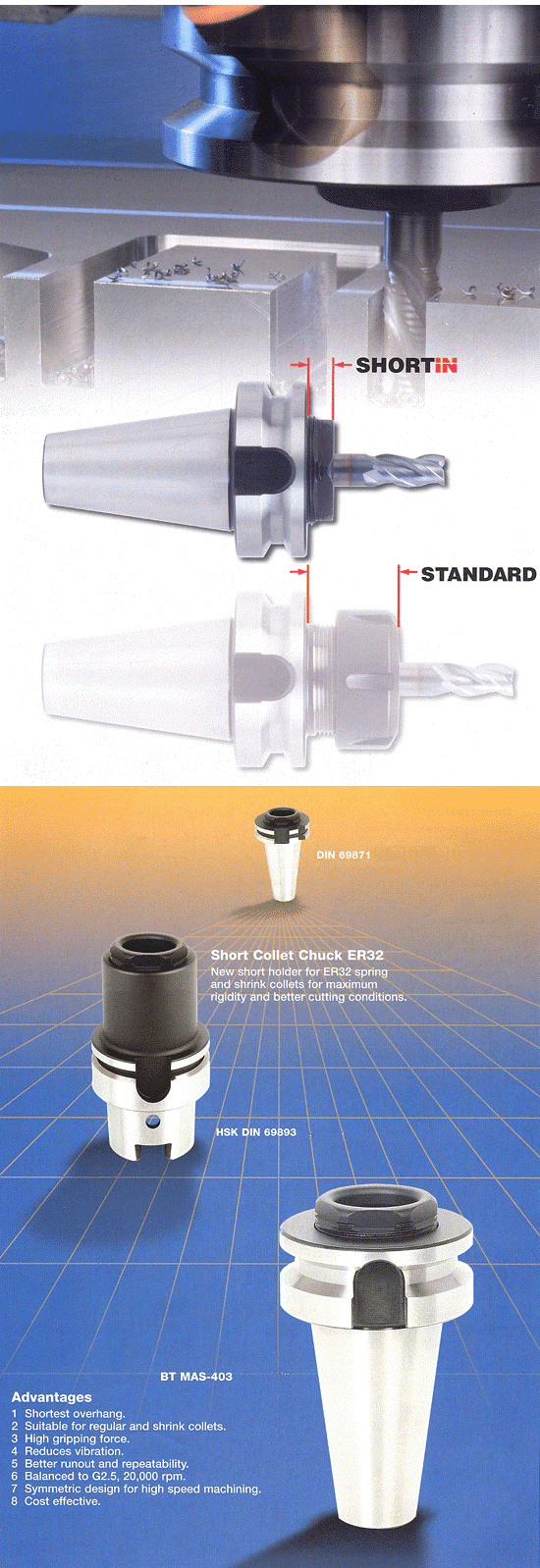

SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks.

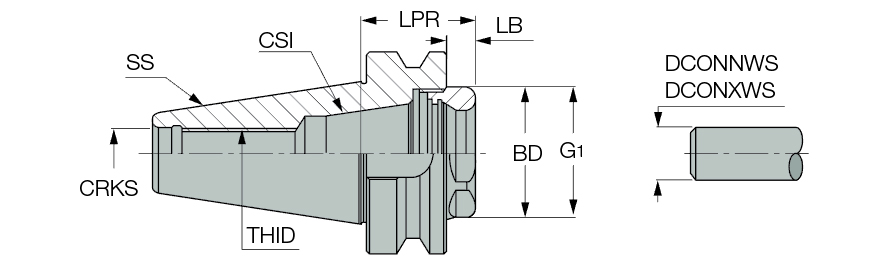

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Diameter (BD) | 1.575″ | Measurement Type | Inch |
| Protruding Length (LPR) | 1.732″ | Body Material | Steel |
| Tool Type | BT | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks. | Country of Origin | Turkey |
| Remarks | For Adaptation Click on More Info. B is the designation for coolant through flange. |
Shipping Info
Package Weight
7.846
