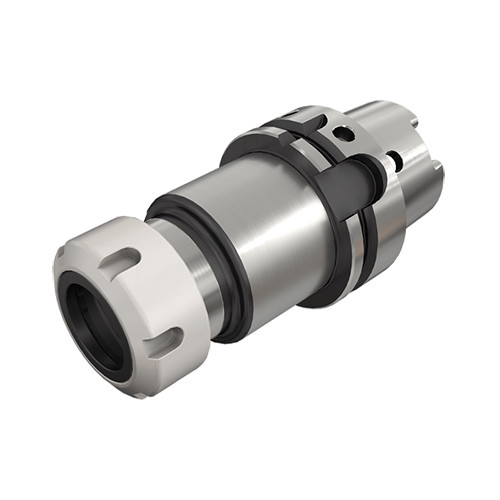

HSK A63 ER32X120
DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.

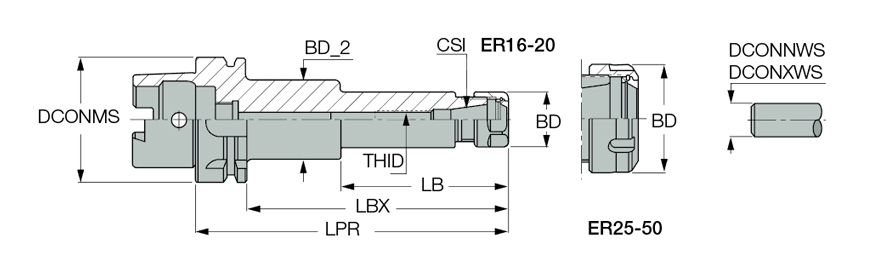

| Shank Size (SS) | 63 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 4.724″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
LocalField10
0
Package Weight
3.655
