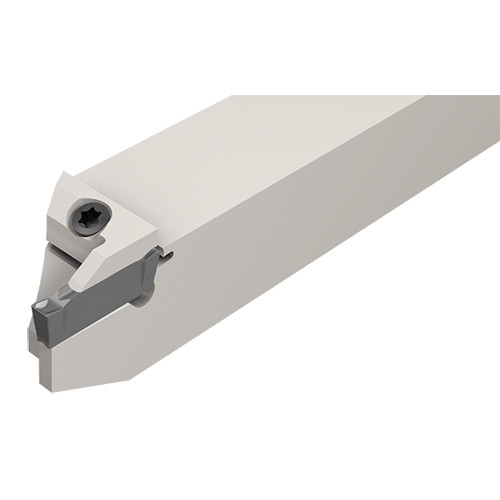

DGTL 12.7B-3D24SH
Parting and grooving short head tools for CNC and Swiss automatics.

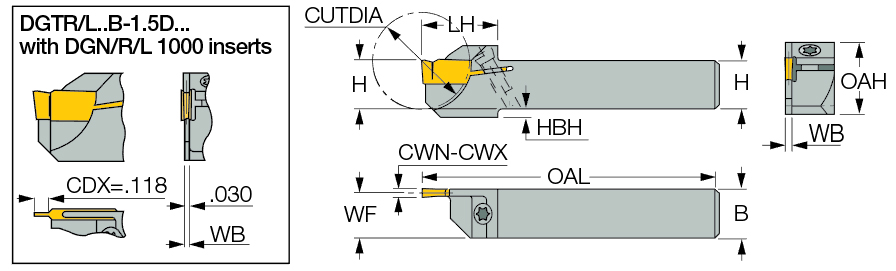

| Shank Height (H) | 1/2″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 1/2″ | Shank Standard | Square |
| Body Width (WB) | 0.094″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1/8″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1″ |
| Overall Length (OAL) | 4.7″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 3/4″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.7″ | Tool Assembly Length (LTA) | 1.14″ |
| Cutting Position | External |
Product Features
| Family Description | Parting and grooving short head tools for CNC and Swiss automatics. | Country of Origin | Israel |
| Remarks | DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info |
Shipping Info
LocalField10
0
Package Weight
0.396
Related Documentation

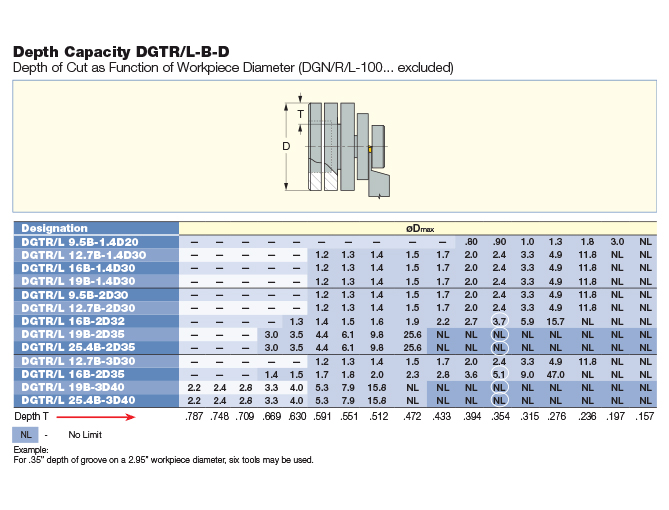

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
