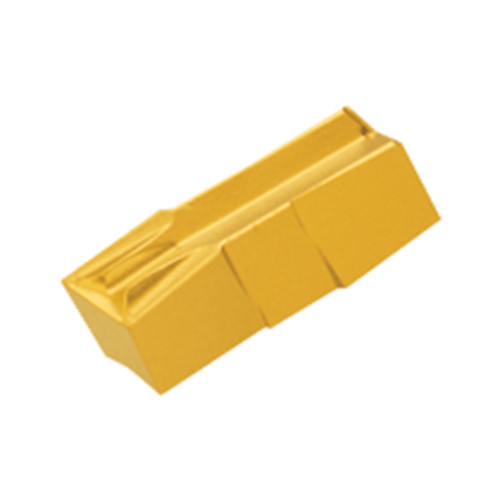

GIF 4.78-0.55 IC8250
CUT-GRIP precision-ground, double-ended inserts for grooving at low to-medium feeds.

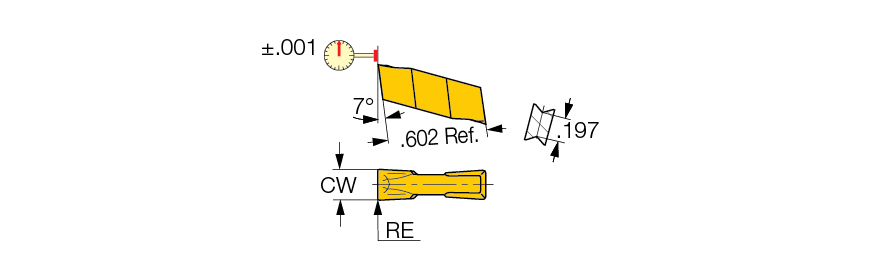

| Cutting Width (CW) | 0.188″ | Application | | Ext. Grooving | Int. Grooving | |
| Corner Radius (RE) | 0.022″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.512″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | FG |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0071 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+Al2O3+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC8250 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | CUT-GRIP precision-ground, double-ended inserts for grooving at low to-medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 |
