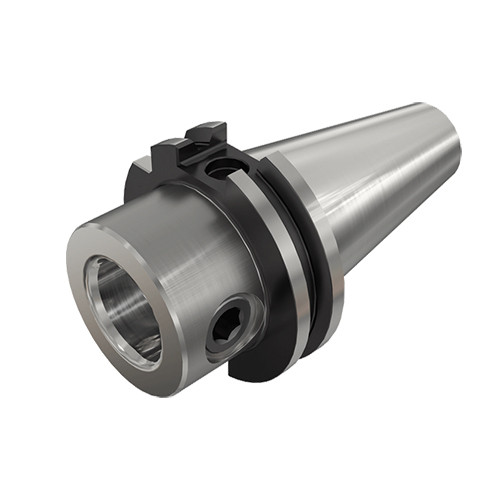

DIN69871 50 CF4-L
DIN69871 form ADB Tapered shanks to CLICKFIT adapters.

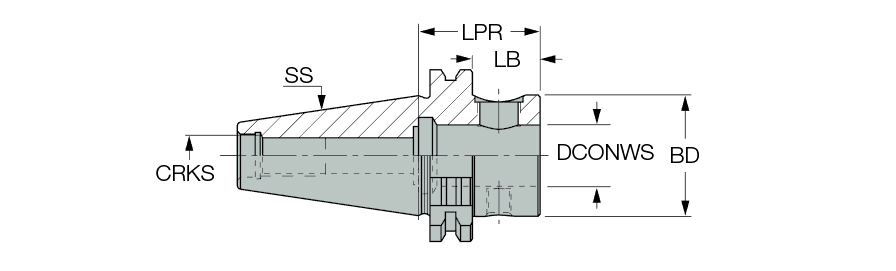

| Protruding Length (LPR) | 100 mm | Weight of Item (WT) | 3.54 Kg |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Diameter (BD) | 44.5 mm | Shank Length (LS) | 101.8 mm |
| Body Length (LB) | 80.9 mm | Flange Diameter (DF) | 97.5 mm |
| Shank Size (SS) | 50 | Overall Length (OAL) | 201.75 mm |

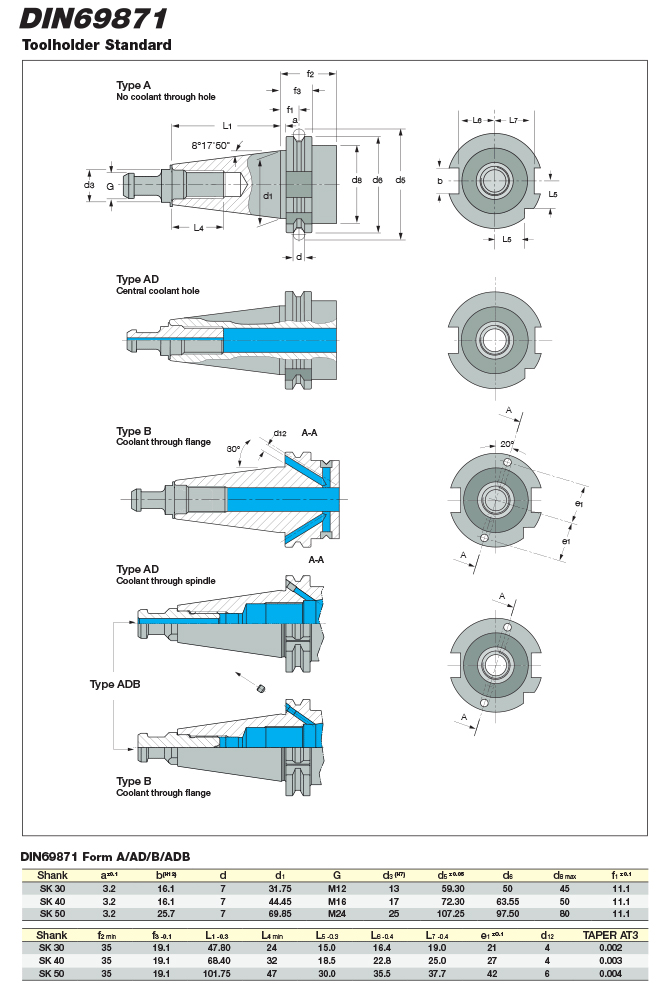

| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | DIN69871 |
| Measurement Type | Metric |
Product Features
| Family Description | DIN69871 form ADB Tapered shanks to CLICKFIT adapters. | Country of Origin | Israel |
| Remarks | Tightening torque: 6 Kgxm For adaptation options, click on More Info |
Shipping Info
Package Weight
8.450
