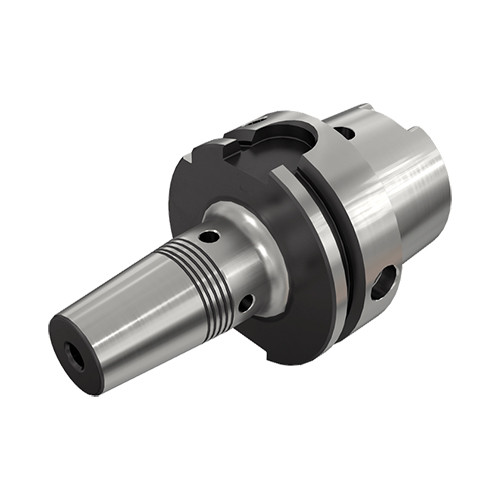

HSK A100 SRKIN7/8X4.125
Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools.

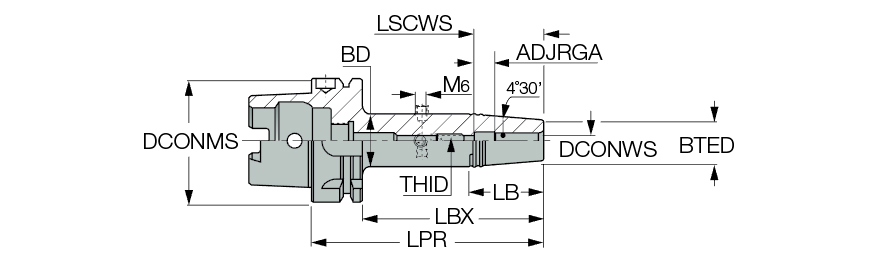

| Connection Diameter Machine Side (DCONMS) | 3.937″ | Shank Standard | HSK A |
| Connection Diameter Workpiece Side (DCONWS) | 7/8″ | Series/List # | SHRINK |
| Shank Size (SS) | 100 | Measurement Type | Inch |
| Body Length (LB) | 2-1/4″ | Tool Type | HSK |
| Protruding Length (LPR) | 4-1/8″ | Body Material | Steel |
| Overall Length (OAL) | 6.094″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm |
Shipping Info
Package Weight
6.773
