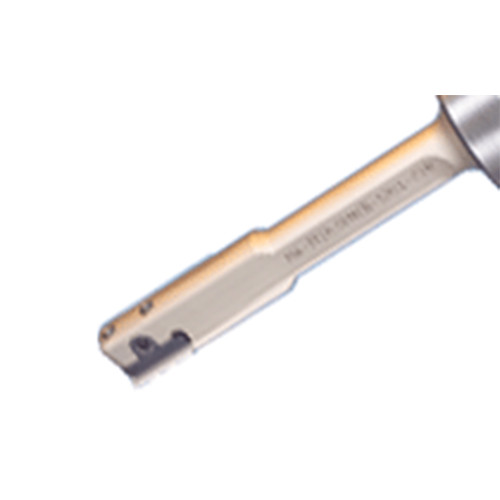

RM-SET.5000H6B-B-C625S
Single-edged indexable reamers used for blind holes.

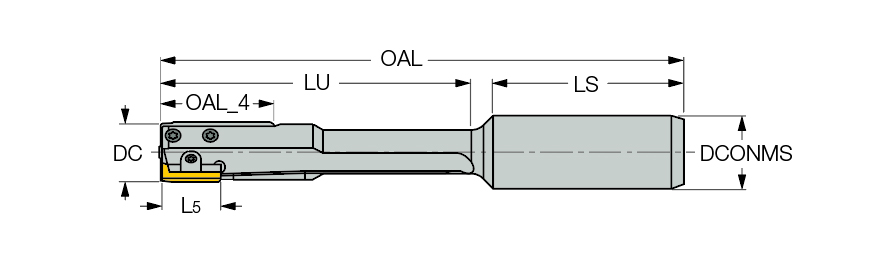

| Cutting Diameter (DC) | 1/2″ | Overall Length (OAL) | 5.31″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Length (LS) | 1.77″ |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Body Material | Steel |
| Usable Length (LU) | 3.35″ | Tool Type | Indexable Reaming Tools |
| Insert Seat Size Code (SSC) | 3.0 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.67″ |
Product Features
| Family Description | Single-edged indexable reamers used for blind holes. | Country of Origin | Italy |

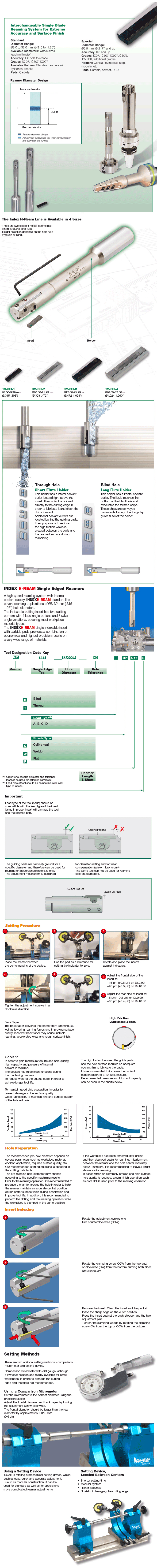

| Remarks | For user guide and cutting conditions, click on More Info |
