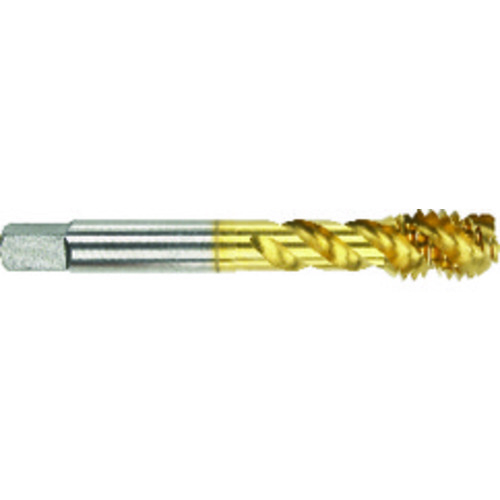

‎2091G SHEARTAP 1/2-20 H11

‎Spiral Flute Tap; 1/2″ - 20 ; 3-3/8″ OAL ; 3 FL ; HSS ; TiN ; H11 ; Series 2091G

Item # 4984800

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 94619

UPC #: 01029887 | 68612594619 | 686125946197

Quantity Available

Virtual Catalog

Thread Diameter Size (TDZ)

1/2″

Special Feature

ShearTap

Threads per Inch (TPI)

Tool Type

Production

Overall Length (OAL)

‎3-3/8″

Chamfer

Semi-Bottoming

Thread Cutting Part Length (THL)

0.63″

Coating

TiN

Flute Count (NOF)

Flute Type

Spiral

Flute Helix Angle (FHA)

48 Degrees

Style

Semi-Bottoming

Applicable Material

| Steel | Stainless Steel |

Measurement Type

Inch

Cutting Edge Material

HSS

Series/List #

2091G

Thread Tolerance Class (TCTR)

H11

Product Features

Remarks

ShearTapô• ShearTapô - for Stainless Steel & Carbon Steel up to 35Rc hardness.• Oversize taps are mainly used for parts that will be plated or heat treated after tapping. Also used in materials that tend to shrink after tapping.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• TiN Coating - Titanium Nitride increases wear resistance, reduces firiction and galling, reduces tapping torque, improves thread quality, and allows increased cutting speeds. Productivity and tool life are improved.

Country of Origin

USA

Shipping Info

Additional Fees and Notes

Package Length

4.00000

Package Width

.50000

Package Height

.50000

Package Weight

0.1
