| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

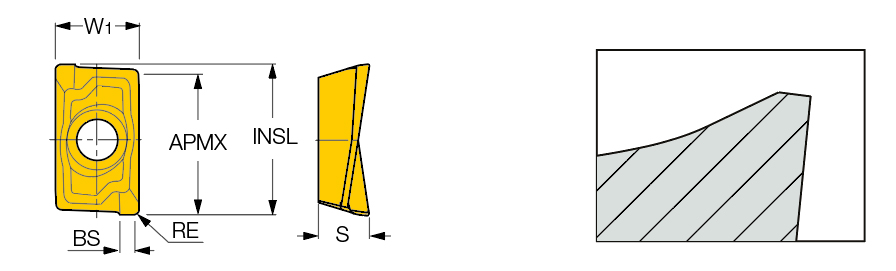

| Cutting Edge Length (L) | 0.616″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.616″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.377″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.222″ | Cutting Edge Effective Length (LE) | 0.541″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IC28 | Body Material | Carbide |
Product Features

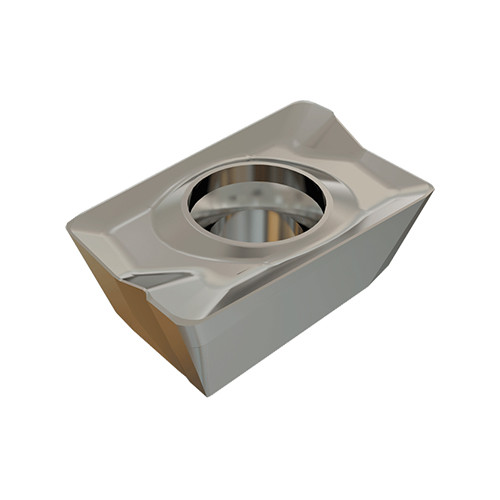

| Family Description | HELIMILL inserts with 2 helical cutting edges for general use. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
.58000
Package Width
.37000
Package Height
.21000
Package Weight
0.017
