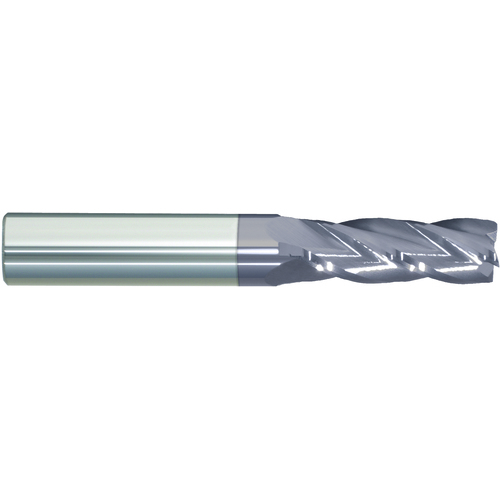

16 mm × 16 mm × 32 mm × 89 mm 4 Flute Single End Carbide Finishing Center Cutting End Mill-ALTiN Series/List #5961T
| Cutting Diameter (DC) | 16 mm | Usable Length (LU) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Finishing |
| Depth of Cut Maximum (APMX) | 32 mm | Tool Type | Single End |
| Overall Length (OAL) | 89 mm | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5961T |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.5
