1/2(R.010)X3 4F FLAT

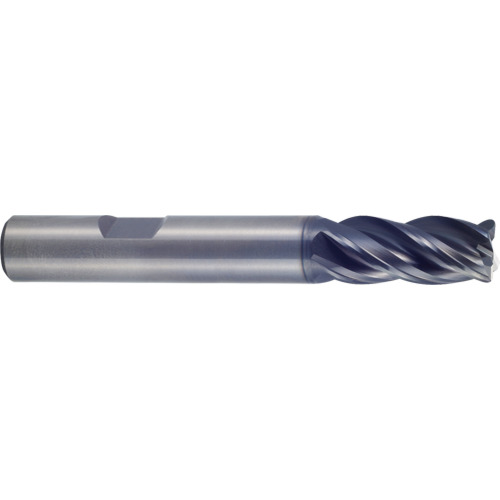

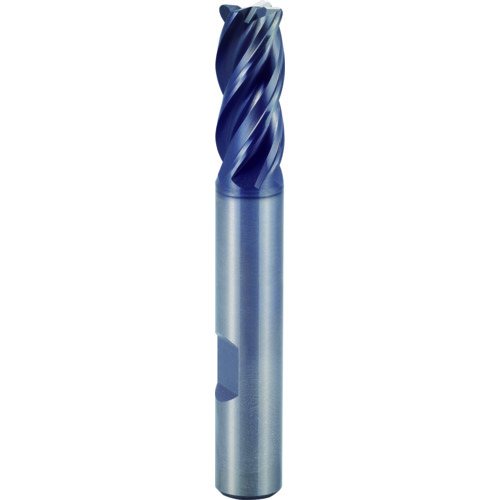

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlCrN ; Series UGMF71
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 3″ | Tool Type | 4 Flute Standard Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | UGMF71 |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.279
